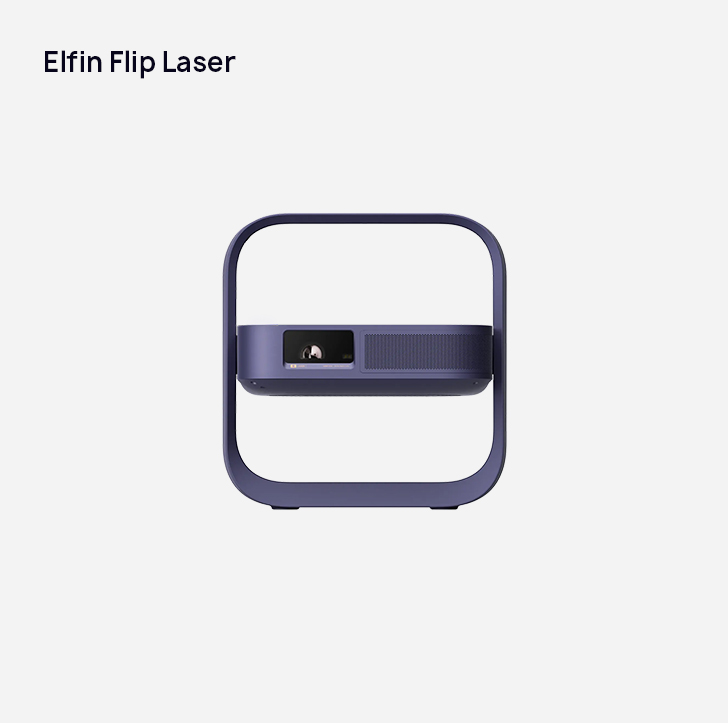

Elfin Flip Laser
- RGB Triple Laser Technology: Delivers brighter, more vibrant visuals with long-lasting laser performance for an enhanced viewing experience.
- 1600 ISO Lumens Brightness: Provides bright and clear visuals even in ambient light, making it suitable for various viewing environments.
- Google TV: Enjoy smart entertainment with easy access to your favourite apps, streaming services, and content.

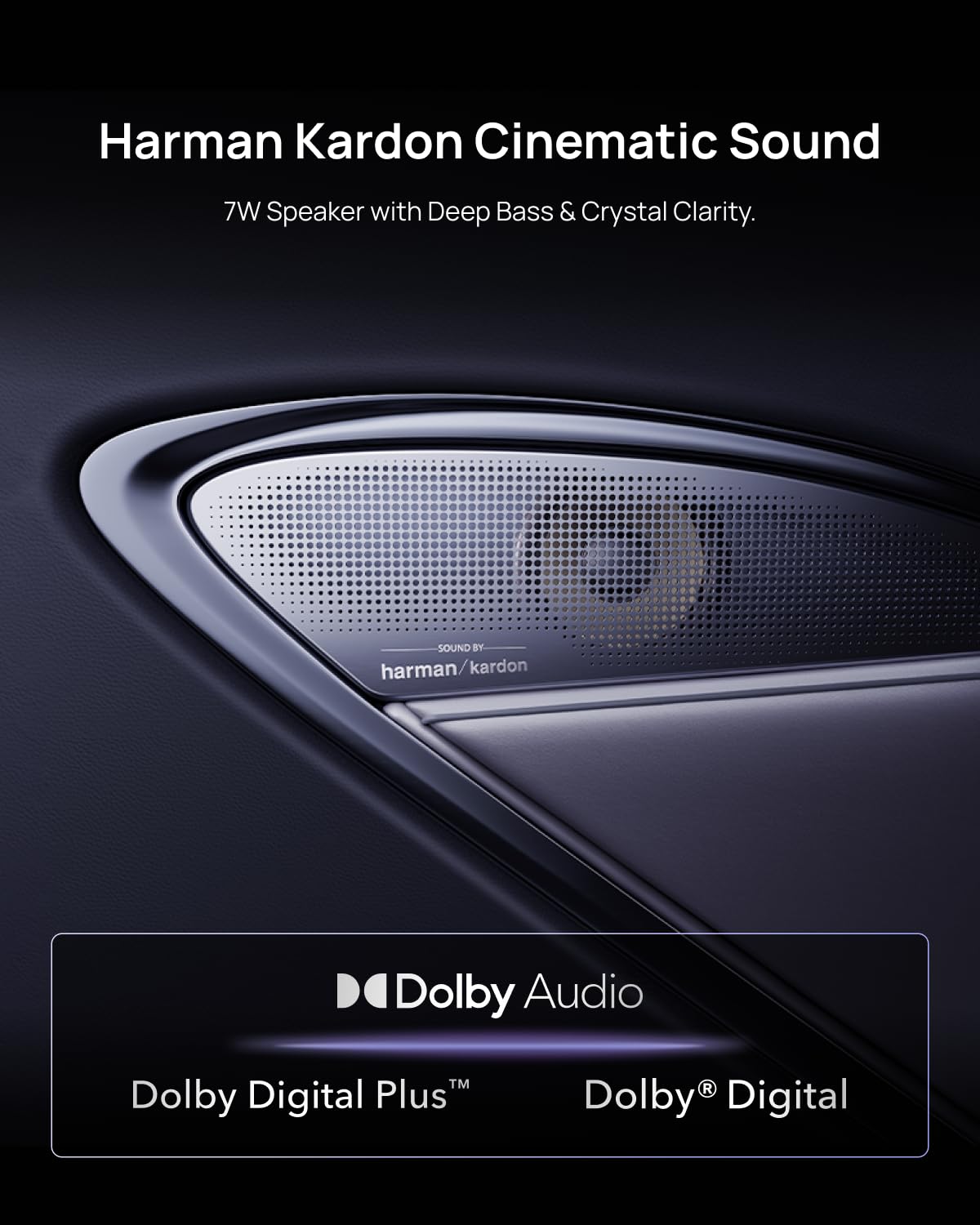

- Harman Kardon Audio: Delivers premium, room-filling cinematic sound for an immersive home entertainment experience.
- 1080P Full HD Resolution: Provides sharp and detailed picture quality with a 1920 x 1080 resolution for an enjoyable viewing experience.
- 10,000:1 Dynamic Contrast: Produces deep blacks and vivid colours with enhanced contrast for more detailed and lifelike images.
- 150" Big-Screen Experience: Creates an immersive cinema-like viewing experience with a large 150-inch display, perfect for entertainment anywhere.

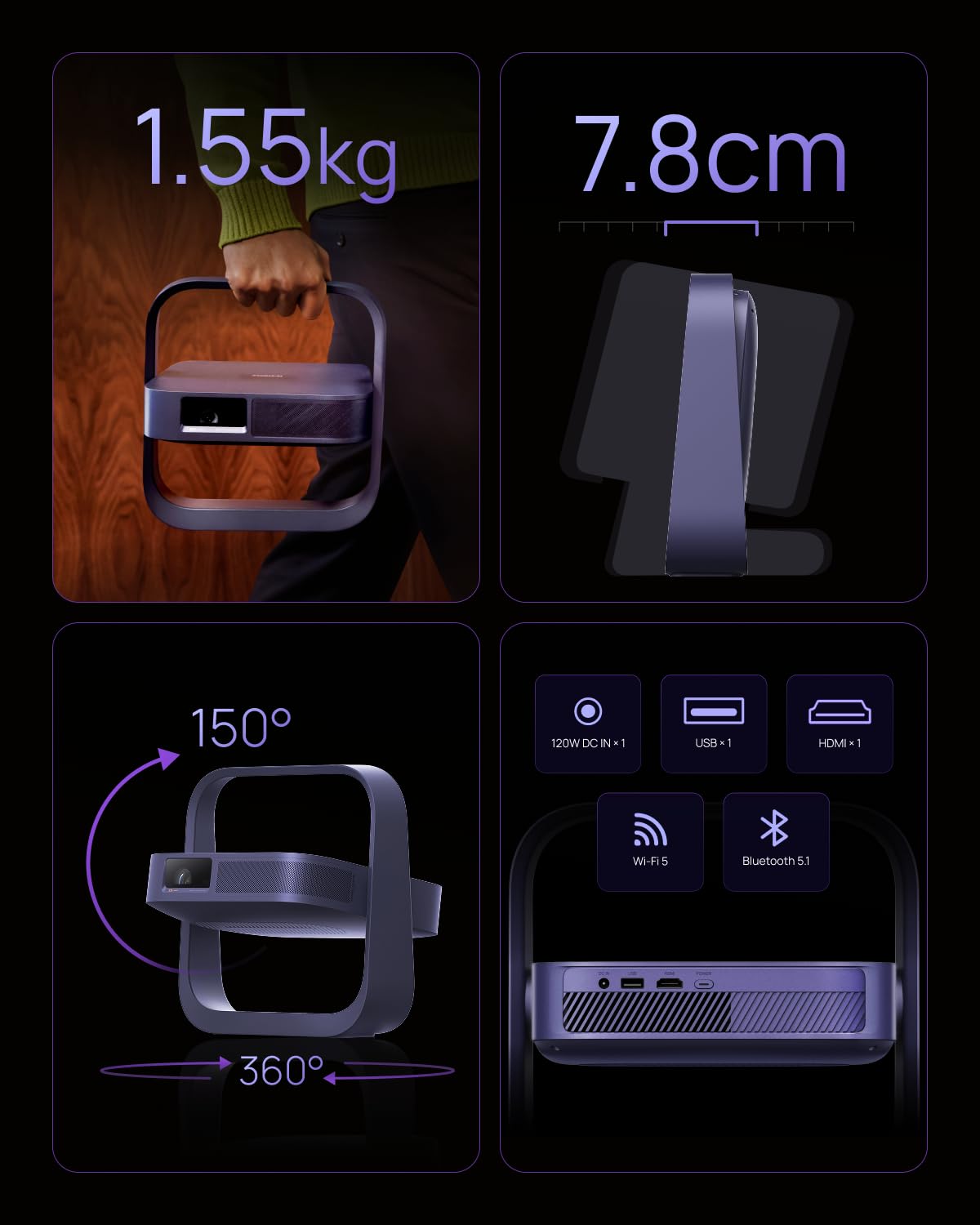

- Book-Sized & Portable: Features a compact, book-sized design that makes it easy to carry and ideal for travel and on-the-go entertainment.
- Smart Auto-Focus: Automatically adjusts the focus for a sharp image, enabling quick and hassle-free setup.
- Low-Latency Gaming: Offers a smooth and responsive gaming experience with reduced input delay for more precise gameplay.
- 110% BT.2020 Color Gamut: Delivers cinema-grade colours with rich contrast for vibrant, accurate, and visually stunning images.
In the Box
Display
- Product Classification
- Home Projector
- Light Source
- RGB Triple Laser
- Display Technique
- DLP
- Display Chip
- 0.23" DMD
- 3D
- /
- Supported Formats
- HDR10, HLG
- Latency
- (Game Mode, AK off)
20ms at 1080P@60Hz
- MEMC
- Yes
- Brightness
- 1600 ISO Lumens 1
- Standard Resolution
- 1920 x 1080 pixels
- Compatible Resolution
- /
- Color Gamut
- BT.2020 110% 2
- Contrast Ratio
- 10,000:1 (Dynamic Contrast) 3
- Lens
- High Light Transmission Coated Lens
- Eye Protection
- Yes
Setup
- Auto Keystone Correction
- Uninterrupted Auto Keystone 4
- Focus
- Auto Focus
- Intelligent Screen Alignment
- Screen Alignment Assist 5
- Intelligent Obstacle Avoidance
- /
- Intelligent Wall Color Adaption
- /
- Optical Zoom
- /
- Digital Zoom
- Yes
- Throw Ratio
- 1.2:1
- Aspect Ratio
- 16:9
- Projection Method
- Front, Rear, Front Ceiling, Rear Ceiling
- Image Size
- 40'' - 200'' 6
System
- CPU
- MT9660
- GPU
- Mali-G52
- RAM
- 2GB
- Storage
- 64GB 7
- System
- Google TV
- Fast Boot
- Yes (STR)
- Mirroring Display
- Google Cast / DLNA
Audio
- Speaker
- 1 × 7W Harman/Kardon
- DTS-Virtual:X
- /
- DTS-HD
- /
- Dolby Audio
- Yes
- Dolby Digital (DD)
- Yes
- Dolby Digital Plus (DD+)
- Yes
Connectivity
- WiFi
- WiFi 5 Dual-band 2.4/5GHz, 802.11 a/b/g/n/ac 8
- Bluetooth
- Bluetooth 5.1
- Input Ports
-
120W DC IN × 1
HDMI(eARC) × 1
USB 2.0 × 1
- Output Ports
- /
Electrical
- Noise Level
- ≤28dB@1m 9
- Power Dissipation
- ≤120W
- Power
- AC100-240V, 50/60Hz
Measurements
- Product Size (H × W × D)
- 254 × 245 × 75 mm 10
- Product Weight
- 1.38 kg 11
- Package Size (H × W × D)
- 356 × 417 × 151 mm 10
- Package Weight
- 2.67 kg 11
What's in the Box

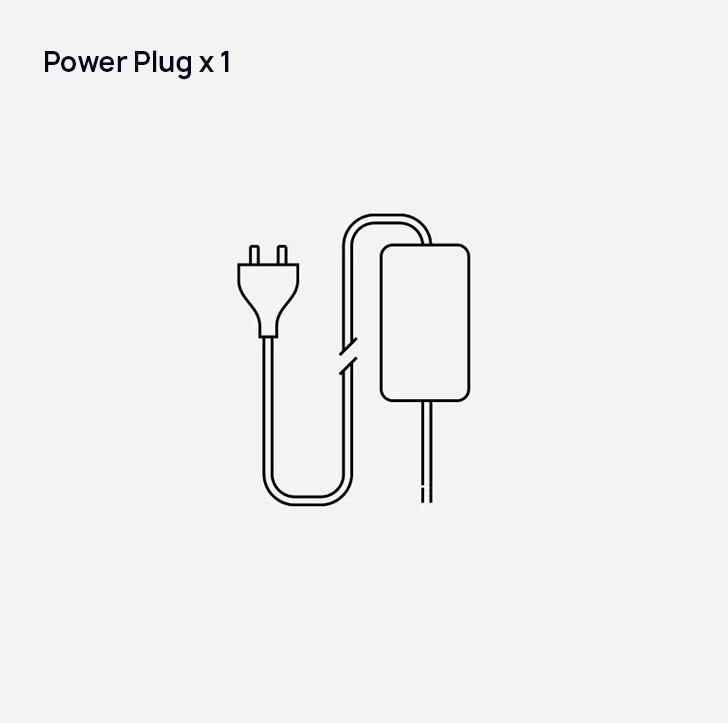

- Power Plug
- × 1
- Manual
- × 1
- Warranty Card
- × 1

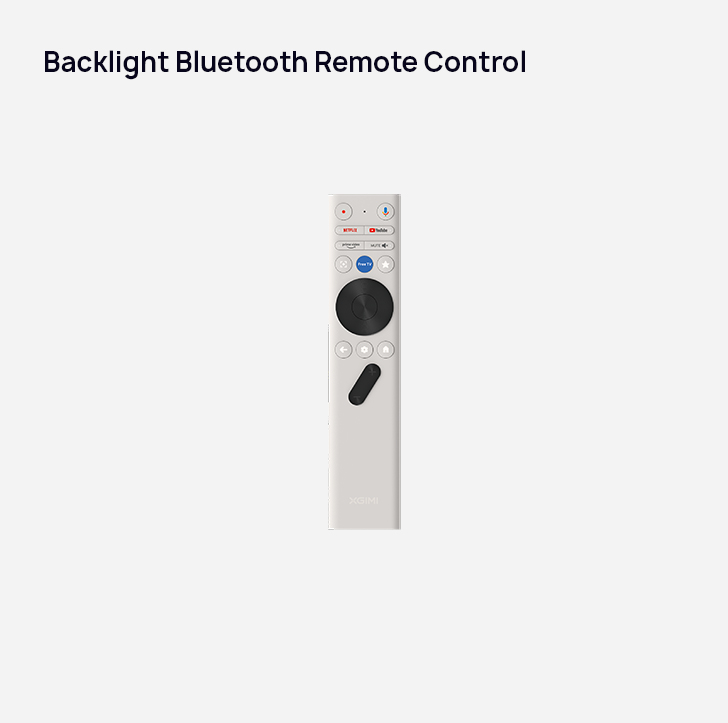

- Bluetooth Remote Control
-
Backlight Bluetooth Remote Control × 1
AAA Batteries × 2
Product Notes:
1. Brightness (light output) will vary depending on usage conditions. White light output is measured according to ISO 21118. The nominal value represents the average value of mass-produced units and is tested under ideal laboratory conditions in Performance Mode/High Power Mode. In Performance Mode, the highest brightness is achieved, which may result in some color differences compared to the default viewing mode. Additionally, the fan speed may increase, potentially causing noise. This is normal. For regular viewing, it is recommended to use other brightness modes.
2. Based on the data from XGIMI Laboratory tests, this product's color gamut area ratio is 110% under the BT.2020 standard and 203% under Rec.709 standard.
3. The 10,000:1 dynamic contrast ratio is measured with Picture Mode set to Vivid. Actual visual performance may vary depending on content and viewing conditions. Brightness adjustment is not supported in Vivid Mode.
4. To ensure accurate calibration, the side throw angle should not exceed 25° (degrees). The display quality may vary based on product usage habits and environmental conditions.
5. The Screen Alignment Assist feature needs to be enabled in the system settings to take effect. Scan a QR code to start Screen Alignment Assist. Then, move the projected image on your phone so that all four sides exceed the screen edge, and the Elfin Flip Laser will automatically adjust for perfect fit.
6. For the best viewing experience, we recommend using a projection size of 60-120 inches. Exceeding this range may affect the quality of your projected content. The display quality may vary based on product usage habits and environmental conditions.
7. The actual storage capacity is subject to change based on various factors, such as system usage, software version, and settings used.
8. Wi-Fi 5 indicates the version of the wireless network protocol supported by the device, and it can be used with wireless routers and other equipment that support the corresponding protocol version. Network speed is influenced by various factors, please refer to actual conditions for precise performance.
9. Measured under an ambient temperature of 25°C with a 1-meter distance from the machine. Results may vary based on different testing environments, conditions, and the product being evaluated. This data comes from XGIMI laboratories.
10. The actual size may vary based on configuration, manufacturing, and testing method.
11. The actual weight may vary based on configuration, manufacturing process, and testing method.
* Actual product features and specifications (including appearance, color, and size) and actual display aspects (including backgrounds, interface, and icons) may vary by country. Please consult the point of sale for further information.
* All performance data in the preceding pages are theoretical values obtained by XGIMI internal laboratories through tests conducted under particular conditions. Refer to the aforementioned product details for more information on the specific testing conditions. Actual performance may vary based on individual product configurations, software versions, application conditions, and environmental factors. All data is subject to actual usage.
* XGIMI makes every effort at the time of publication to ensure the accuracy of the product information it provides. Due to subsequent changes involving product batches, production, and supply factors, it may be necessary for XGIMI to make changes and adjustments to text and images so that they match the performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
* Operating temperature: 32°F to 104°F
* All parameters listed on this page are measured in an XGIMI internal test environment for mass production. User experiences may vary in different settings, usage conditions, software versions, etc. Please check the official XGIMI website for detailed test standards and data.
* The product includes a printed manual. However, the electronic manual will be updated on the XGIMI website. If there is any discrepancy or conflict between the printed and the electronic manual, please refer to the latest electronic manual on the official website.
* We advocate for environmental sustainability and paper conservation. For instructions in various languages, please scan the QR code of the printed manual or download the electronic version. If you have any questions during use, please contact us via info@xgimiprojector.in.
